Base OP Stack Security Audit: 29 Checks EVM Equivalence Hides

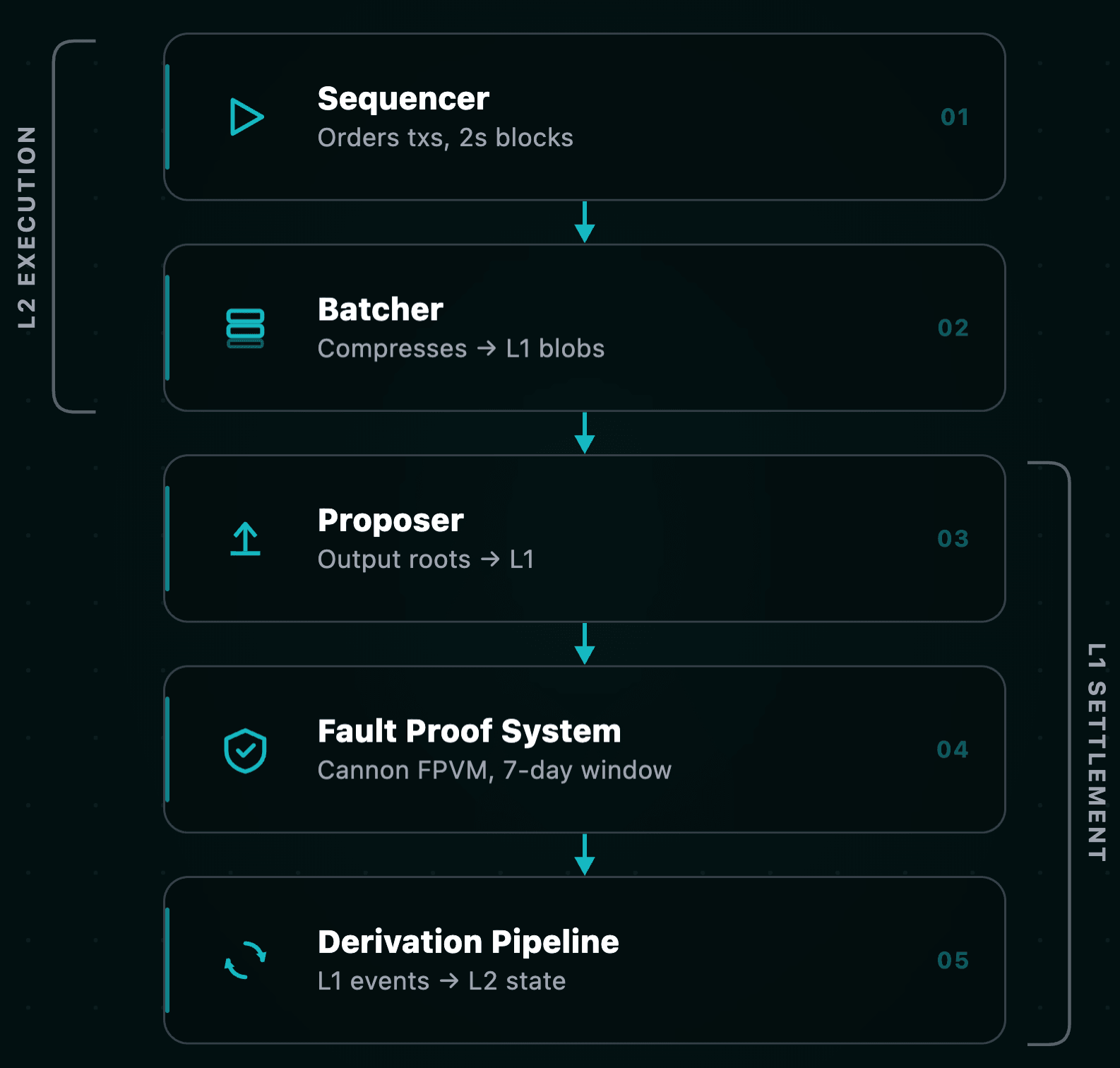

Understand the OP Stack execution model

• Sequencer — A single, Coinbase-operated node that orders transactions, produces L2 blocks every 2 seconds (with Flashblocks targeting 200ms pre-confirmation), and submits compressed batches to Ethereum. The sequencer cannot steal funds but has unilateral power over transaction ordering and censorship.
• Batcher — Compresses L2 transaction data and posts it to Ethereum L1. Since the Dencun upgrade (EIP-4844), Base uses blob-carrying transactions for data availability, cutting L1 posting costs dramatically versus calldata.
• Proposer — Submits output roots (L2 state commitments) to L1. Since October 2024, proposing is permissionless — anyone can submit via the DisputeGameFactory contract with a 0.08 ETH bond.
• Fault proof system — Uses the Cannon FPVM (a MIPS-based instruction-level execution environment) to replay any L2 state transition on-chain. Dispute resolution follows an interactive bisection game that narrows disagreements to a single instruction step.
• Derivation pipeline — The op-node monitors L1 for TransactionDeposited events, deposit transactions, and batch data. It deterministically reconstructs L2 chain state from L1.

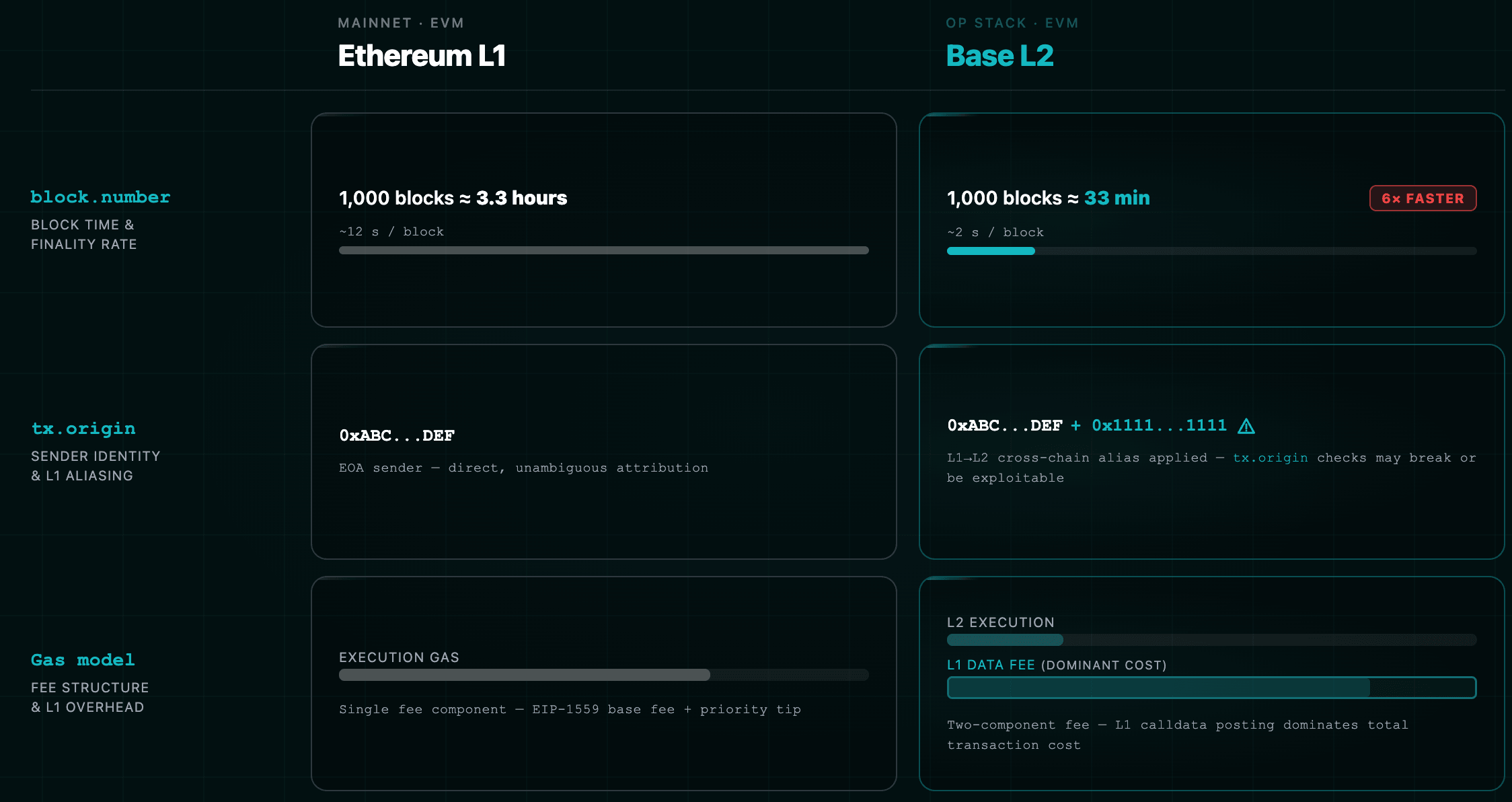

Map the opcode and state divergences

Audit actions

• Flag every block.number reference. If used for time calculations, recommend replacement with block.timestamp.
• Flag every tx.origin check. Verify whether the contract can receive L1→L2 deposits and whether aliasing is handled. See our deep dive on tx.origin phishing vulnerabilities.
• Verify gas estimation includes L1 data fees. Call GasPriceOracle.getL1Fee(bytes) with the unsigned RLP-encoded transaction to get the actual cost.
• Access L1 state through the L1Block predeploy at 0x4200...0015, not through opcodes. Note that L1Block values update once per L1 block (~12s) — they are inherently stale relative to the L1 tip.

Identify the predeploy attack surface

Mitigate OP Stack fault proof vulnerabilities

Timer manipulation in bisection games

• Fraudulent root acceptance via timer inheritance: The "chess clock" mechanism in FaultDisputeGame allowed a malicious actor to inherit timer credit from honest actors' claims through grandparent relationships. By submitting a fraudulent root, waiting for an honest challenge, then responding at the last second, the attacker caused the honest challenge to expire while the fraudulent root remained uncountered. A single block of L1 censorship at the critical moment was sufficient to force acceptance of an invalid state root.
• Honest root rejection: The same timer manipulation worked in reverse — an attacker could defeat a correct root claim, blocking valid withdrawals.

GameType validation bypass

Blob data handling in op-challenger

Audit actions

• Do not build withdrawal logic that bypasses the 7-day dispute window. The fault proof system is the only mechanism preventing invalid state roots from draining the bridge.
• Monitor OP Stack security disclosures. Fault proof vulnerabilities affect every chain on the Superchain, including Base.
• If your protocol interacts with DisputeGameFactory or OptimismPortal2, audit for GameType validation and ensure your logic handles game resolution edge cases (e.g., the Guardian shifting to PermissionedDisputeGame under attack).

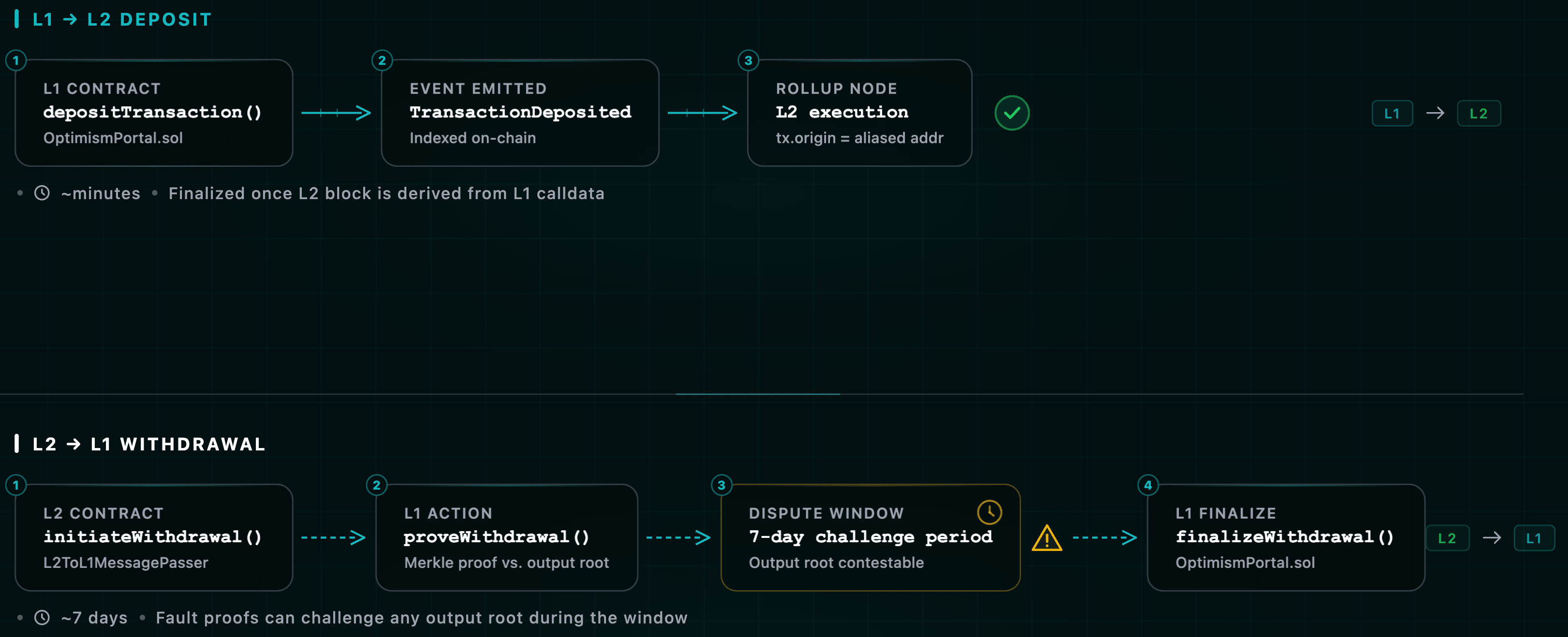

Audit the bridge integration layer

L1→L2 deposits

• Deposits are guaranteed inclusion at the start of each epoch's first L2 block.
• Deposit transactions lack cryptographic signatures (v, r, s are zeroed) — authenticity is guaranteed by L1 inclusion and canonical derivation.
• Authentication uses a cryptographically derived sourceHash: keccak256(bytes32(uint256(0)), keccak256(l1BlockHash, bytes32(uint256(l1LogIndex)))).
• Address aliasing applies: when an L1 contract sends a deposit, its address is offset by 0x1111...1111 on L2. Without this, an attacker could deploy a contract at the same address on L1 and L2, spoof identity cross-chain, and bypass authorization.

L2→L1 withdrawals

1. Initiate: Call L2ToL1MessagePasser.initiateWithdrawal() on L2. Stores a withdrawal hash in the contract's Merkle-Patricia trie.
2. Prove: After the output root containing the withdrawal is proposed on L1, submit a Merkle proof to OptimismPortal2.proveWithdrawalTransaction().
3. Finalize: After the dispute window elapses (~7 days) and the state root is confirmed, call OptimismPortal2.finalizeWithdrawalTransaction().

• The Guardian role (Optimism Security Council) can reject finalized roots during an airgap window after game resolution.
• DelayedWETH holds dispute game bonds with a payout delay for redirection if a game resolves incorrectly.
• The Guardian can shift the system to PermissionedDisputeGame under active attack.

Cross-domain message authentication

• Replay protection — Messages include a nonce. Verify nonce handling is correct in both messenger contracts.
• Failed message replay — Failed messages can be replayed on the target chain. Target contracts must be idempotent to handle this safely.
• Sender authentication — xDomainMessageSender() returns the authenticated cross-chain sender, but only when called by the messenger contract itself. Contracts must verify msg.sender == address(messenger) before trusting this value.
• Gas estimation — Cross-domain messages must budget for both L1 and L2 execution costs. Under-gassed messages fail and enter the replay queue.

Audit actions

• Verify every cross-domain message handler checks the aliased sender address before executing privileged logic.
• Test deposit failure scenarios. What happens when L2 execution of a deposit reverts? Are funds recoverable?
• Confirm withdrawal handlers are idempotent. A withdrawal proven against an invalidated root must be re-provable against a valid root without double-spending.
• Implement rate limits and circuit breakers on bridge-connected contracts. A bridge exploit should not cascade into total protocol insolvency. See our bridge security checklist for 100+ specific checks.
• If integrating third-party bridges (Across, Stargate, Hop), audit their specific trust model: key custody, challenge periods, oracle dependencies, and liquidity pool solvency assumptions.

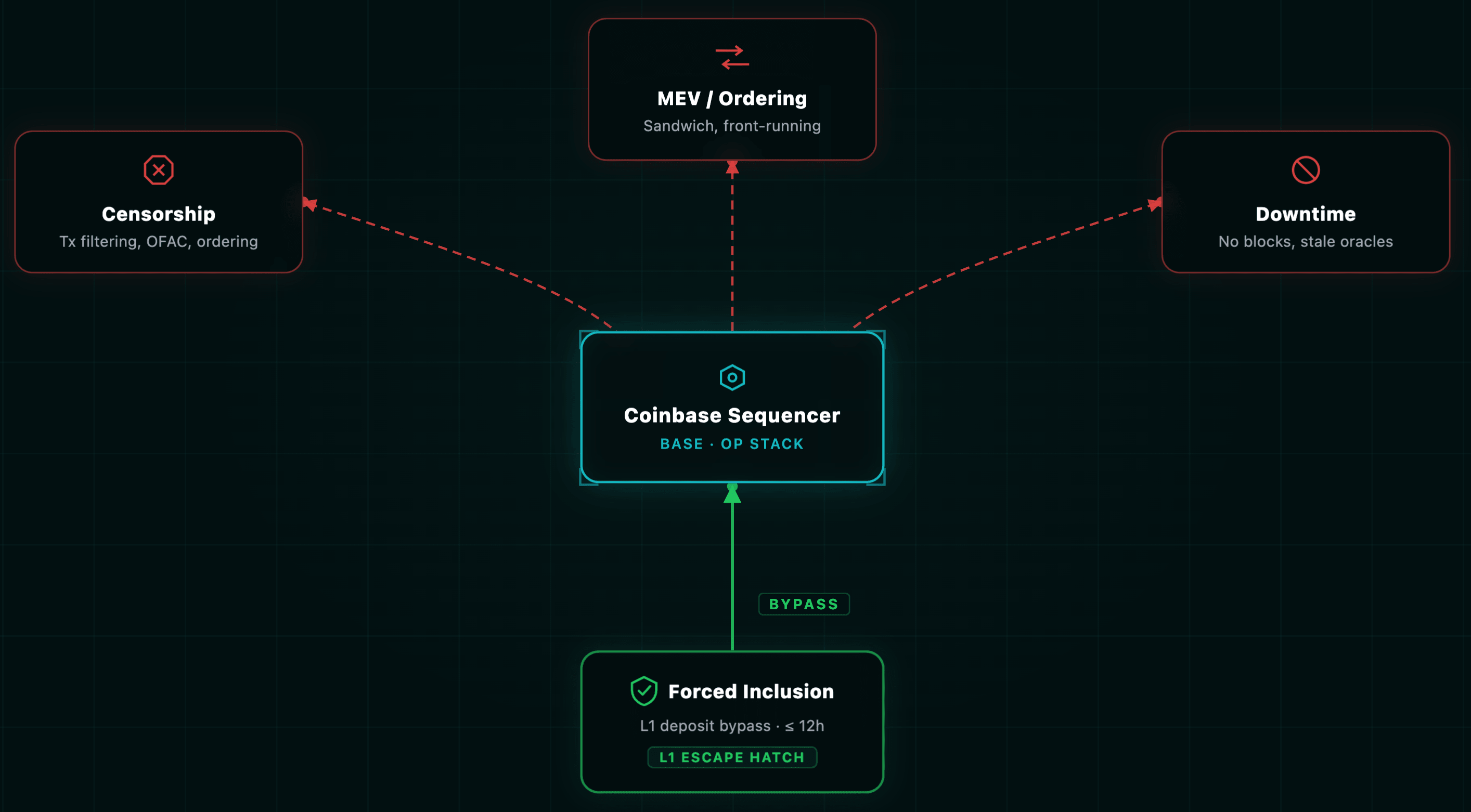

Defend against sequencer-level threats

Censorship and ordering

• The sequencer has unilateral transaction ordering power. Assume sandwich attacks and front-running are possible at the infrastructure level. For mitigation strategies, see our guide on MEV protection.
• OFAC/regulatory filtering at the sequencer is possible. Transactions from sanctioned addresses may be refused.
• The sequencer cannot steal funds, but censorship of time-sensitive transactions (oracle updates, liquidations, auction bids, governance votes) can cause indirect fund loss.

Downtime

• If the sequencer goes offline, no new L2 transactions are processed. On August 5, 2025, Base experienced a ~33-minute block production halt at block 33,792,704.
• A subtler failure mode: the sequencer continues producing L2 blocks and issuing pre-confirmations but fails to post batches to L1. This creates a state divergence where users see "confirmed" transactions that have no L1 data availability backing.
• During prolonged downtime, price oracles stale out, liquidity indexes become volatile, and leveraged positions become vulnerable to cascading liquidations the instant the network resumes.

Forced inclusion

Audit actions

• Test sequencer downtime scenarios: What happens to your protocol if no L2 blocks are produced for 1 hour? 12 hours? 24 hours?
• Design graceful degradation: If oracle updates or keeper transactions stop arriving, implement fallback logic with extended execution windows.
• Do not assume ordering fairness. Unlike L1 where block builders compete, Base's single sequencer controls the mempool unilaterally.

Harden proxy upgrade paths

Upgrade-specific vulnerability classes

• Unguarded initializers: Proxies cannot use constructors. If the initialize() function lacks an initializer modifier, an attacker can re-initialize the contract post-deployment, overwriting permission variables. This is one of the most common access control failures in deployed contracts.
• Storage layout collisions: Upgrades must maintain exact slot ordering from previous implementations. Reordering, removing, or resizing state variables corrupts persistent state.
• Privilege conflation: The ProxyAdmin owner must never coincide with the protocol's functional manager. A social-engineered upgradeToAndCall can redirect the implementation to an attacker-controlled contract.

Audit actions

• Run slither-check-upgradeability on all proxy contracts to detect storage layout violations automatically.
• Verify initializers are protected and cannot be re-called after deployment.
• Confirm no selfdestruct exists in implementation contracts (even post-EIP-6780).
• Implement a timelock for your protocol's own upgrades, independent of whether Base system contracts have one. Give users exit time before parameter changes take effect.
• Monitor OP Stack network upgrades (Bedrock, Ecotone, Fjord, Jovian). Each can change gas pricing, fee calculation, and fault proof behavior. Test your contracts on testnet before mainnet activation.

Configure auditing tools for Base

Tool matrix

What automated tools miss

• Cross-domain message authentication failures
• Address aliasing mishandling on deposit paths
• Sequencer dependency assumptions in time-sensitive logic
• L1 data fee impact on protocol economics
• Predeploy interaction correctness (especially L1Block staleness)
• Withdrawal flow correctness and idempotency under fault proof invalidation

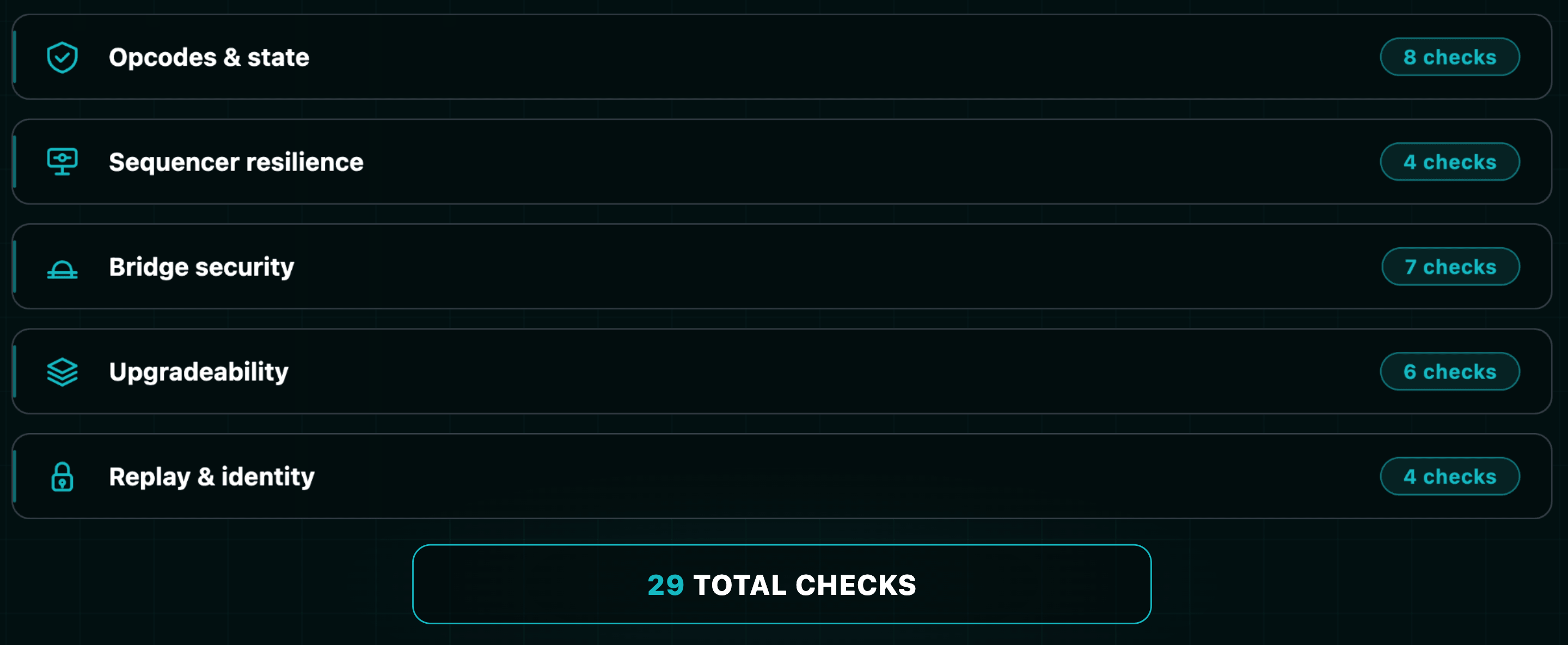

Apply the L2 security checklist

Opcodes and state

• All block.number references reviewed for L2 timing (2s blocks vs. 12s)
• block.timestamp used instead of block.number for time-dependent logic
• L1 state accessed via L1Block predeploy, not opcodes
• L1Block staleness accounted for (values lag L1 tip by up to ~12s)
• PREVRANDAO not used for security-critical randomness
• tx.origin aliasing handled for L1→L2 deposit paths
• Gas estimation includes L1 data fee via GasPriceOracle.getL1Fee()
• No assumptions about deflationary base fee mechanics on L2

Sequencer resilience

• Protocol tolerates sequencer downtime (1h, 12h, 24h scenarios tested)
• Liquidation/auction/governance flows tolerate 12-hour forced inclusion delay
• Oracle fallback logic for stale price feeds during downtime
• No assumption of transaction ordering fairness

Bridge security

• Cross-domain message handlers verify msg.sender == messenger before trusting xDomainMessageSender()
• Address aliasing correctly applied/de-aliased in authentication logic
• Deposit failure scenarios tested (L2 execution revert, insufficient gas)
• Withdrawal handlers are idempotent across fault proof invalidation cycles
• 7-day withdrawal delay respected — no UX or logic assumes fast L2→L1 settlement
• Rate limits and circuit breakers on bridge-connected contracts
• Third-party bridge trust models audited independently

Upgradeability

• slither-check-upgradeability run on all proxy contracts
• Initializers protected by initializer modifier, not re-callable
• Storage layout compatibility verified across all upgrade versions
• No selfdestruct in implementation contracts
• Protocol-level timelock on upgrades, independent of system-level controls
• Contracts tested against upcoming OP Stack upgrades on testnet

Replay and cross-chain identity

• EIP-155 enforced — chain ID (8453) embedded in all signed payloads
• Cross-chain message nonces validated, with expiration deadlines
• No assumption that identical addresses on L1 and L2 imply identical bytecode
• Commit-reveal windows account for L1 confirmation depth + FORCE_INCLUSION_PERIOD
